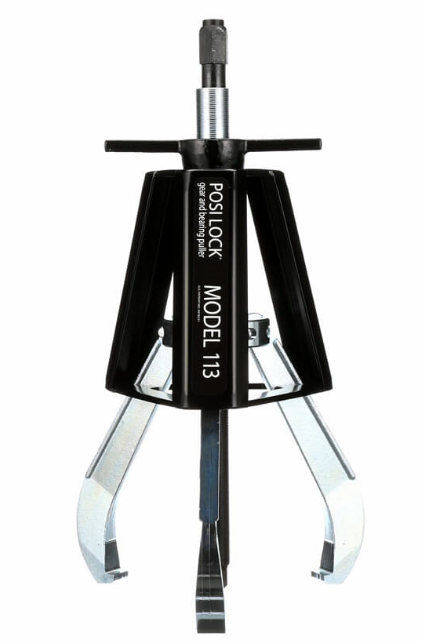

Model 113

Jaws: 3

Capacity: 30 ton (267 kN)

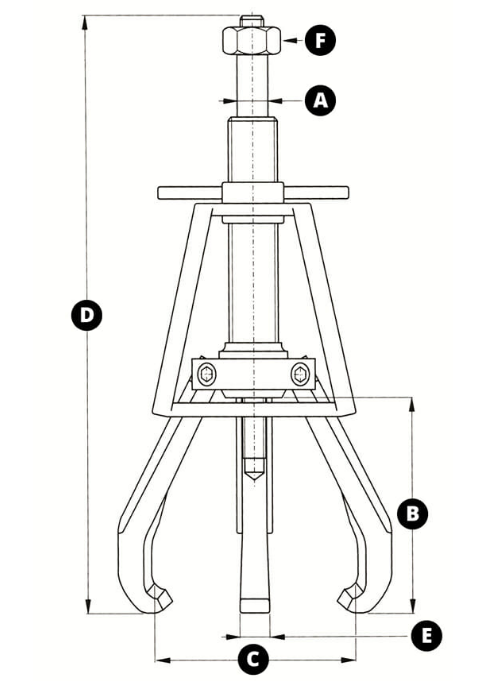

Reach (B): 12 in (305 mm)

Spread Range (C): 2.5 to 18 in (64 to 457 mm)

Weight: 44 lbs (19.9 kg)

Center Bolt Diameter      (A): 1.12 in (28.5 mm)

Overall Length (D): 27.25 in (692.2 mm)

Jaw Width (E): 1.25 in (32 mm)

Hex Socket Size      (F): 1.25 in (32 mm)

Maximum      Torque: 600 ft./lb. (811 N·m)
